abstract

Integrating high-power tungsten lamp, objective lens, integrating sphere and spectrometer, the micro area transmittance measurement system with dual channel light spot meeting the requirements of 0.1mm-0.8mm has been independently developed. It supports the simultaneous display of dual channel arbitrary test spectrum range, as well as the display of measured values and historical measured values. It can carry out self calibration of light and dark spectra regularly, support manual adjustment and user-defined calibration of full wavelength machine error. It can quickly detect the micro area transmittance of specific 2D and 2.5D areas for various mobiles phoness and tablet screens.

Research background

In recent years, China's smart phones industry has developed rapidly, and its industry prospect is good. Among the current global mobiles phones brands, apple, Samsung, Huawei, Xiaomi, oppo and vivo, the top six mobiles phones brands have accounted for the vast majority of global smartphones shipments; Among them, except that Samsung mobiles phoness are not produced and assembled in Chinese factories, it can be said that more than 75% of the global smart phoness are produced in Chinese factories; In 2020, the total shipment volume of smart phoness will be 1.292 billion, and most of the mobiles phones panels need to measure the ink IR hole and the multi-point transmittance of the panel. The current industry standard is that all test points of each panel need to be fully inspected. For domestic manufacturers, the testing demand for the ink IR hole and the transmittance of the mobiles phones panel should be at least 8 billion times (2 ink holes and 6 panel transmittance), This type of test will have great market potential.

application area

This time, we introduce a rapid detection system for micro area transmittance in specific 2D and 2.5D areas of various mobiles phoness and tablet screens.

The current application scenario of this system mainly focuses on the production test of mobiles phones panel, tablet computer panel and the transmittance test of various small-size optical filters. It can be used for different types of products according to different spot sizes. It can be matched with different peripheral devices or automatic systems, and can also realize semi-automatic / full-automatic testing. It only needs to be matched with a reasonable platform, which can reach the level of almost full-automatic.

Having said so much, many people may have questions. What is the ink IR hole mentioned above? What is the importance of the transmittance that has been talked about?

What is ink IR hole?

The IR ink hole we refer to here is actually the black dot area near the earpiece on the mobiles phones or tablet. In the screen of this area, ink is added after special treatment, so that the optical transmittance here can filter out visible light and ultraviolet light, and make the light of infrared wavelength pass through normally. Through the transmitted light, the sensor under the screen can normally identify the distance and the environment, so that the mobiles phones can automatically adjust the brightness with the change of ambient light, or automatically turn off the screen when answering the phones. Of course, this is only the most basic application. Manufacturers may have different application methods for different conditions and environments.

What is transmittance?

Transmittance refers to the ability of light to pass through a medium. It is the percentage of the luminous flux passing through a transparent or translucent body and its incident luminous flux. When the parallel monochromatic light passes through a uniform and non scattering medium, part of the light is absorbed, part passes through the medium, and part is reflected by the surface of the medium. The transmittance can represent the light transmission efficiency of a display device or the like. The value of light transmittance is percentage, and the value range is 0 ~ 100%. If the light is completely absorbed by the medium, it = 0, t = 0. If the light is fully transparent, it = I0, t = 100%.

Test principle

The system uses its own high-power tungsten lamp as the light source. After focusing through the objective lens, it is hit on the surface of the sample. Through the integrating sphere at the bottom of the sample, the transmitted light is recovered and homogenized, and then input into the spectrometer. The light received by the integrating sphere is quickly analyzed by the spectrometer.

For transmittance detection, the maximum detection limit can reach 0.01%. With this system, it can not only analyze and detect the transmittance trend, but also accurately and quickly detect all kinds of samples.

Compared with similar products in the market, most of them use imported core devices, such as ocean optical spectrometer or evantis spectrometer; As a spectrometer manufacturer of the same level in China, Ruhai optoelectronics has independently developed this micro area transmittance system on the basis of having optical fiber spectrometer as the core technology, which can achieve the full independent research, development and production of the test system on the basis of complete self-research.

Our advantage

  The dual channel light spot shall meet the requirements of 0.1mm-0.8mm;

  Support the simultaneous display of dual channel arbitrary test spectrum range, and the simultaneous display of measured values and historical measured values;

  Self calibration of light and dark spectrum can be carried out regularly, and manual calibration and user-defined calibration of full wavelength machine difference are supported at the same time;

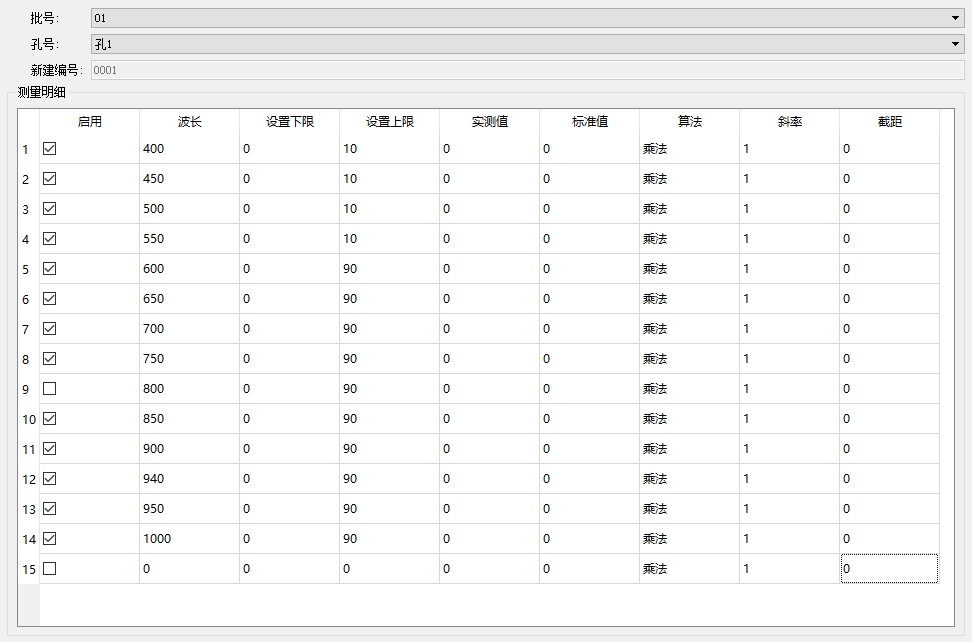

Custom settings, calibration

  Support manual and automatic measurement, external trigger control test, user-defined cycle test, etc.

  The imaging is clear and accurate, and the exposure time can be set freely;

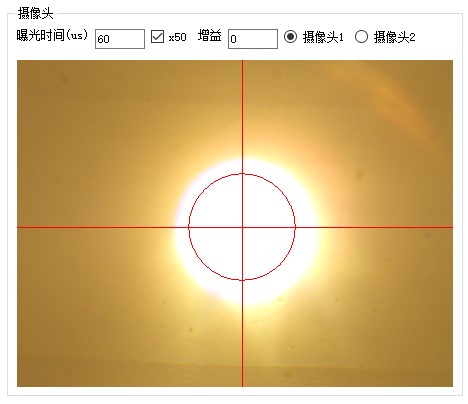

Spot imaging

  The X-Y axis of the sample moves with high precision, and the Z axis can be adjusted manually for the main optical path;

  The sample platform includes scratch prevention treatment;

  The matched high-power tungsten lamp can stably control the test time within 0.7s;

  When a single sample is tested for many times in the 400-1000 nm band, the static repeatability can reach less than 0.2% and the dynamic repeatability can be less than 0.2% - 0.3%.

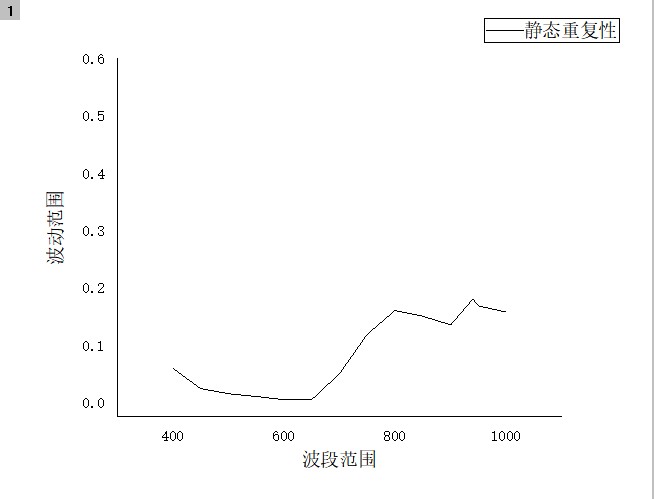

Static repeatability fluctuation trend

Technical indicators

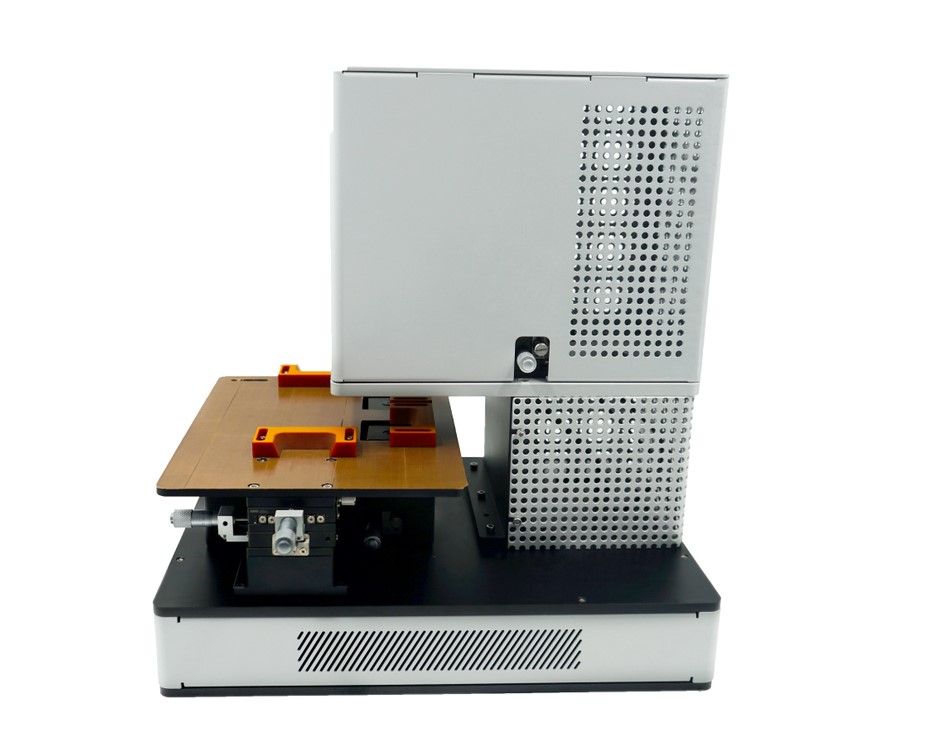

Product appearance

Micro area transmittance detection system

Epilogue

With the increase of production capacity of all parties, the demand for testing in this direction is also rising. Welcome friends with any similar needs to leave contact information or call for consultation. We warmly welcome you to discuss plans or learn from each other.
